Description

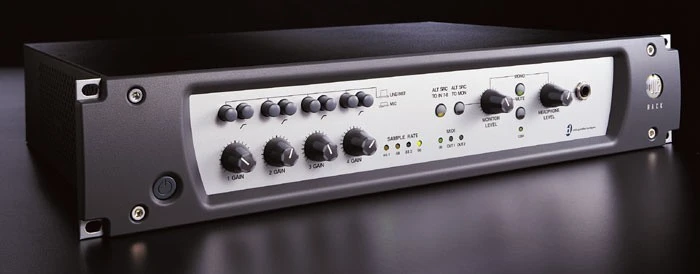

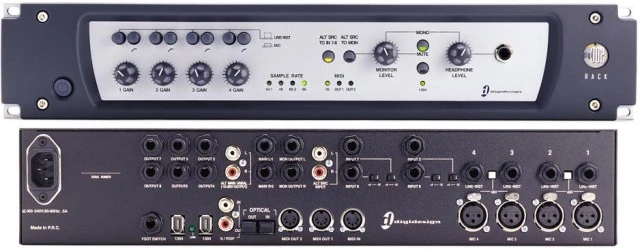

Digi 002 Rack
Firewire connectivity.
Eight analogue inputs and eight analogue outputs, all balanced.
Inputs 1-4 have mic preamps with 48V phantom power, switchable in pairs.
Eight channels of ADAT optical I/O or two channels of S/PDIF I/O.
MIDI In and two MIDI Outs.
A-D and D-A: 24-bit at 44.1, 48, 88.2 and 96kHz sample rates.
Outputs 1 and 2 mirrored on quarter-inch TRS monitor outputs and RCA outputs.
Alternate Source input on RCA connectors for monitoring tape players, CDs and so on.
Maximum input levels: mic +3dBu, line +18dBu.
I/O frequency response: +0.15/-0.5 dB, 20Hz-20kHz.
Input dynamic range: 101dB A-weighted on inputs 1-4; 108dB A-weighted on inputs 5-8.
Output dynamic range: main outputs 114dB, Monitor outputs 112dB, outputs 3-8 114dB, Alt outputs 98dB (all A-weighted).
Firewire connectivity.
Eight analogue inputs and eight analogue outputs, all balanced.
Inputs 1-4 have mic preamps with 48V phantom power, switchable in pairs.
Eight channels of ADAT optical I/O or two channels of S/PDIF I/O.
MIDI In and two MIDI Outs.
A-D and D-A: 24-bit at 44.1, 48, 88.2 and 96kHz sample rates.
Outputs 1 and 2 mirrored on quarter-inch TRS monitor outputs and RCA outputs.
Alternate Source input on RCA connectors for monitoring tape players, CDs and so on.
Maximum input levels: mic +3dBu, line +18dBu.
I/O frequency response: +0.15/-0.5 dB, 20Hz-20kHz.
Input dynamic range: 101dB A-weighted on inputs 1-4; 108dB A-weighted on inputs 5-8.
Output dynamic range: main outputs 114dB, Monitor outputs 112dB, outputs 3-8 114dB, Alt outputs 98dB (all A-weighted).
Specs
Reference Number
NOIZ632265
