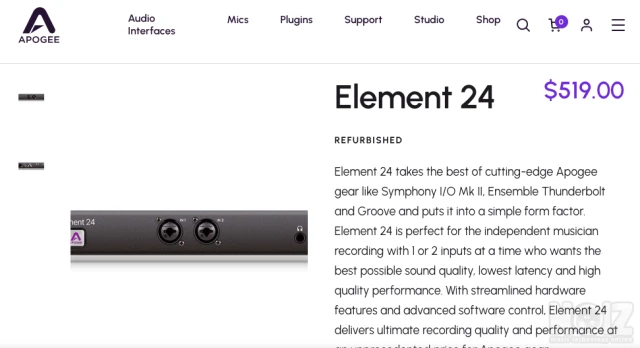

Thunderbolt audio interfaces for Mac - AD/DA converters

Great condition

specs:

- Thunderbolt audio interfaces for Mac

- Sound quality equal to Apogee Ensemble Thunderbolt

- AD/DA conversion for recording up to 192kHz/24-bit

- Single port Thunderbolt connectivity to Mac for ultra-low latency performance

- 1.41ms round-trip at 96kHz with a 32 buffer setting

- New Element Control Software for Mac provides all control of hardware parameters including input gain, output level and low latency monitoring

- New Element Control Mobile App provides wireless remote control of hardware via iPhone, iPad or iPod touch

- Works with Apogee Control desktop hardware remote control accessory

- Multi-Unit Thunderbolt support – Connect any two Element audio I/O boxes directly to Thunderbolt ports on your computer

Apogee Element 24 Audio Interface Specifications

10 IN x 12 OUT Thunderbolt Audio I/O box

AD/DA conversion for recording up to 192kHz/24-bit

A/D conversion:

Max input level (+4dBu ref/Mic): +20dBu

Max input level (-10dBV ref): +6dBV

Input impedance: 5KOhm

Freq resp 10 Hz -20Khz: > +/-0.2dB (@44.1Khz)

Rel. THD + N: -110dB

Dyn. Range: 119dB (A-weighted)

D/A conversion:

Max output level (+4dBu ref): +20dBu

Max output level (-10dBV ref): +6dBV

Line output impedance: 90 Ohm

Freq resp 10Hz -20 Khz: > +/- 0.05dB (@44.1Khz)

Rel. THD+N : -114dB

Dyn Range: 123dB (A-weighted)

Headphone Max output level:

560mW into 30 Ohm

90mW into 600 Ohm

Headphone THD+N: -107 dB with 600 Ohm load @ 19 dBu

Headphone Dyn Range: 117dB a-weighted

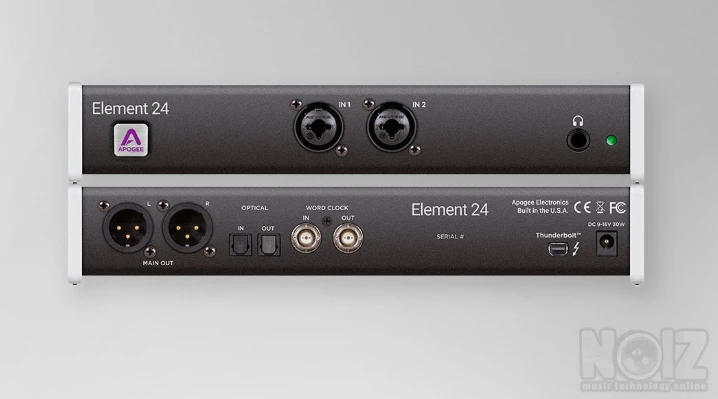

2 analog inputs with world-class mic preamps and selectable 48v phantom power for connecting microphones, instruments or line-level devices

2 combination inputs

4 analog outputs

2 balanced L/R XLR outputs

1 1/4” stereo headphone output

Single port Thunderbolt connectivity to Mac for ultra-low latency performance

1.41ms round-trip at 96kHz with a 32 buffer setting

Optical I/O: Supports ADAT, SMUX &S/PDIF

ADAT: 8 channels 44.1-48 kHz on 1 Toslink connector

SMUX: 4 channels 88.2-96 kHz on 1 Toslink connector

S/PDIF: 2 channels, up to 192 kHz on 1 Toslink connector

Word Clock IN/OUT via BNC connections for syncing with
