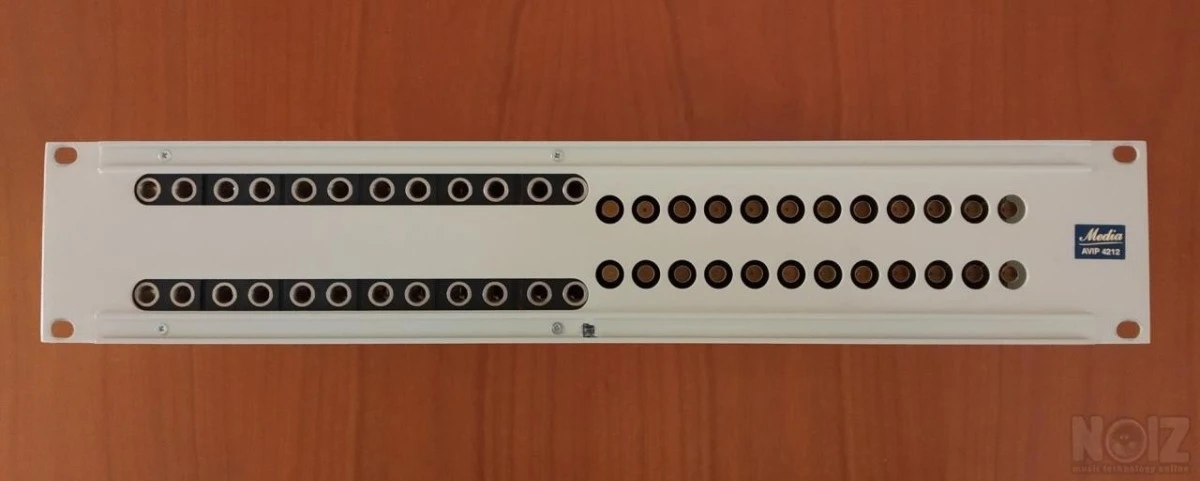

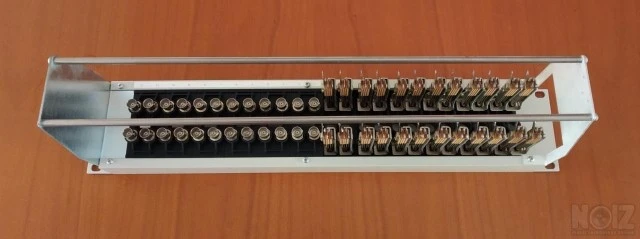

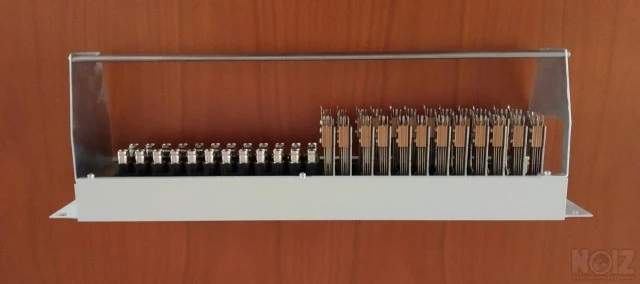

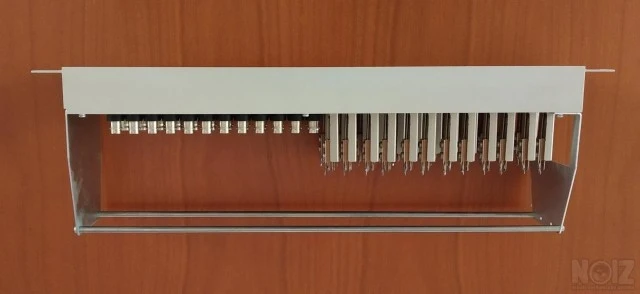

AVIP 4212/M/121 12x2 Audio + 12x2 Video Patch Panel

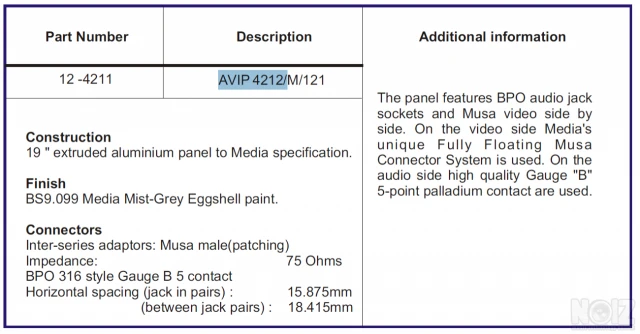

The panel features BPO audio jack

sockets and Musa video side by

side. On the video side Media's

unique Fully Floating Musa

Connector System is used. On the

audio side high quality Gauge "B"

5-point palladium contact are used.

Construction

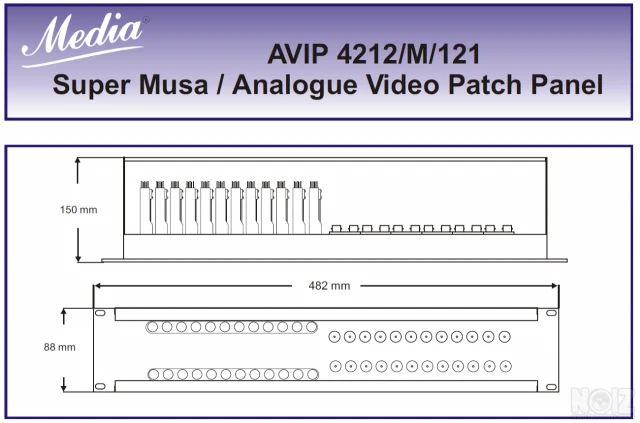

19 " extruded aluminium panel to Media specification.

Finish

BS9.099 Media Mist-Grey Eggshell paint.

Connectors

Inter-series adaptors: Musa male(patching)

Impedance: 75 Ohms

BPO 316 style Gauge B 5 contact

Horizontal spacing (jack in pairs) : 15.875mm

(between jack pairs) : 18.415mm
