DAC Audiomeca * Enkianthus * DAC Anagram

Πωλειται DAC AUDIOMECA * ENKIANTHUS * DAC ANAGRAM 24 bit-192 KHZ.....εδω παραθετω τα χαρακτηριστικα του...Technical Information

Appearence: glossy stainless steel, black polished metacrylate and gold.

Dimensions: 430mmL x 360mmD x 103mmH

Weight: 7 KG

Cabinet: extremely rigid, heavy and non resonant

Mechanical grounding: through one concealable rear spike

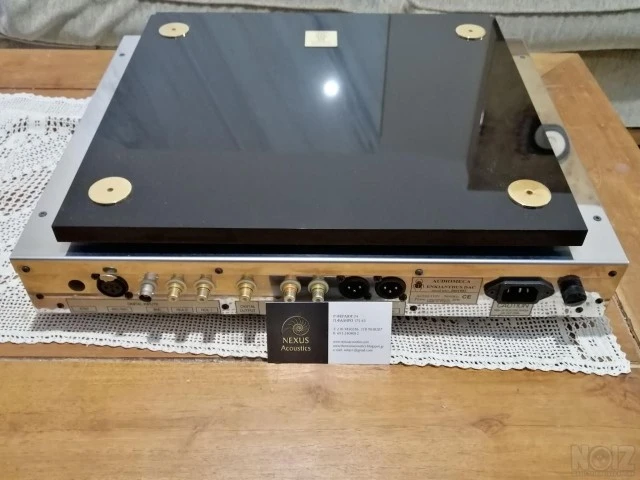

Selectable digital inputs:

1 - RCA coax (S/PDIF, 75ohms, 0.5V)

2 - RCA coax (S/PDIF, 75ohms, 0.5V)

3 - BNC coax (S/PDIF, 75ohms, 0.5V)

4 - AES/EBU XLR (11 Oohms, 5V)

5 - AT&T ST-glass (option)



The Theoretical Approach



Digital output: on RCA coax (to DAT, DCC etc..)

Unbalanced Audio outputs: on 2 x RCA coax connectors (0.1 ohm, 2Vrms)

Balanced Audio outputs: on 2 x XLR connectors (0.1 ohm, 2Vrms)

All golden RCA coax connectors with teflon insulation

True 24 x 192 D/A converter chip

Resolution up to 24 bits (even 32)

Automatic locking on all sampling frequencies : 32,44.1,48, 64, 88.2, 96, 176.4, 192kHz

� Lock on � input data indicator

Phase invert facility performed in the digital domain

No PLL after the input chip. Input and output clock totally independant. A new feature and a breakthrough in the digital

processing techniques

Virtually zero jitter

32 bits floating point DSP for sampling rate conversion, interpolation and signal enhancement

Upgradable open structure to any new signal format and to improved new algorithm thanks to modular construction,

programmable gate array and DSP chips

Audiophile Audio stages with perfect phase linearity.

Superb and neutral sound quality

Separated power regulations for digital, audio and input sections

Special attention to high frequencies shielding cabinet using absortive and reflective properties of various material combination

DAC sections and Audio stages located into a separated copper box mechanically isolated from the main cabinet

Special attention paid to PCB layout

Selected components

Measured performances to match (on Audio Precision)

Frequency response: set for optimal transcient response

Signal noise Ration (SNR) >107dB

Dynamic range: 140dB

Channel separation: 125dB

Low power consumption: 25W at 230V

Alimentation: 130/230Volts - 50/60Hz

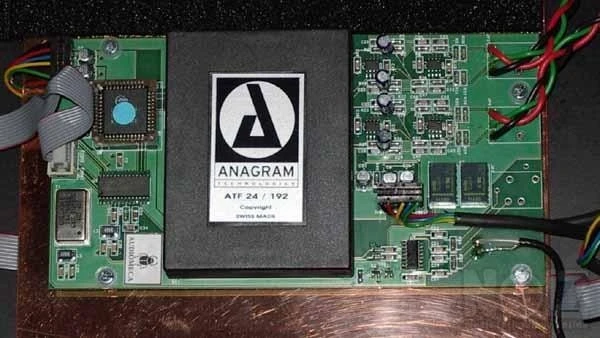

Αριστη κατασκευη απο τον PIERRE LURNE με DAC της ANAGRAM 24bit-192 KHZ
