MATRIX Mini-i DAC AD1955 Digital - Analog Preamplifier XLR and Headphone Amplifier

MATRIX Mini-i AD1955 V2 USB DAC SPDIF - XLR - RCA - Headphones

Σε άριστη κατάσταση.


https://www.headfonia.com/matrix-mini-i-balanced-dac/



MATRIX AD1955 Mini-i DAC (Version 2011)

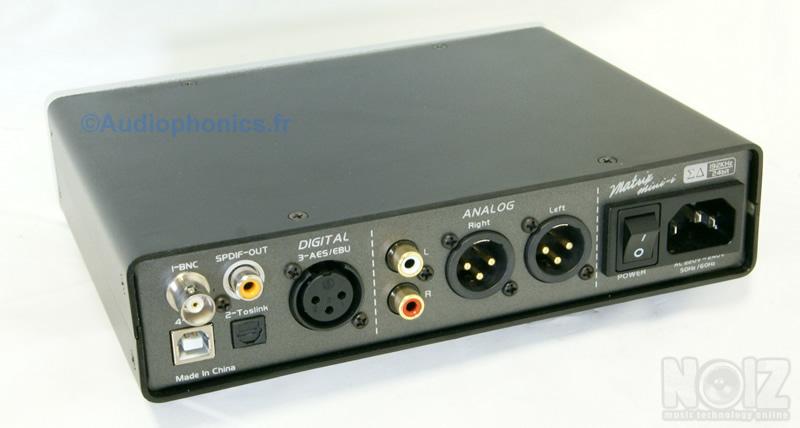

DAC with USB inputs - BNC (SPDIF) - Toslink - AES / EBU
RCA - XLR Variable Outputs - Headphone Amplifier + Remote Control Aluminum

This unit is a Digital - Analog Preamplifier XLR and Headphone Amplifier.

Features:/ Span>

Diagram100% symmetrical

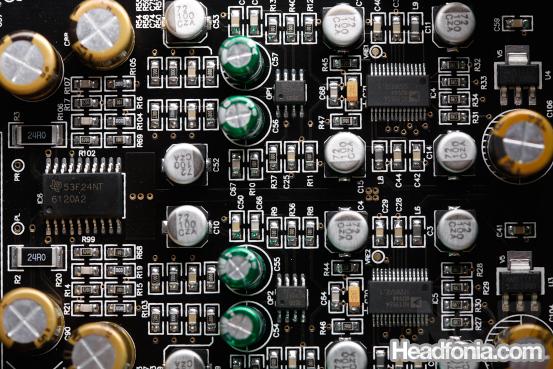

Decoding chips 2x AD1955
Up to 24Bit / 192kHz

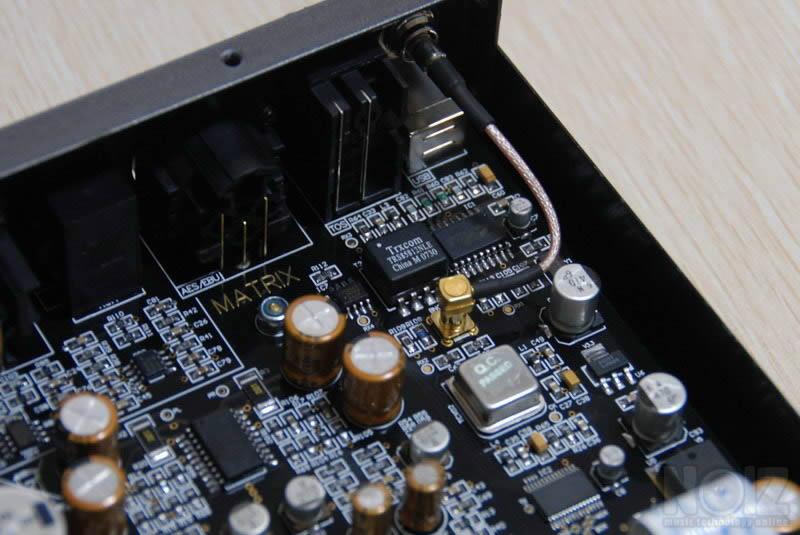

Receiving chip AK4113 low jitter
Integrated headphone amplifier, up to 300ohm
Outputs XLR and RCA audiophile quality variables
Allows to be used as preamp or simple DAC (without volume control)

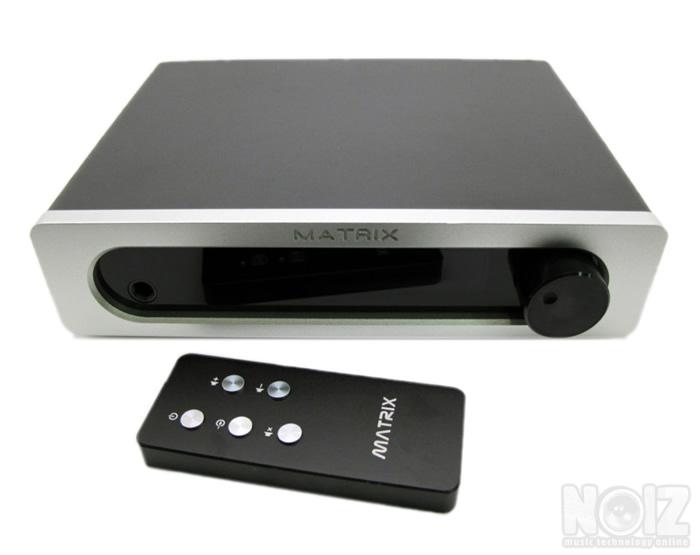

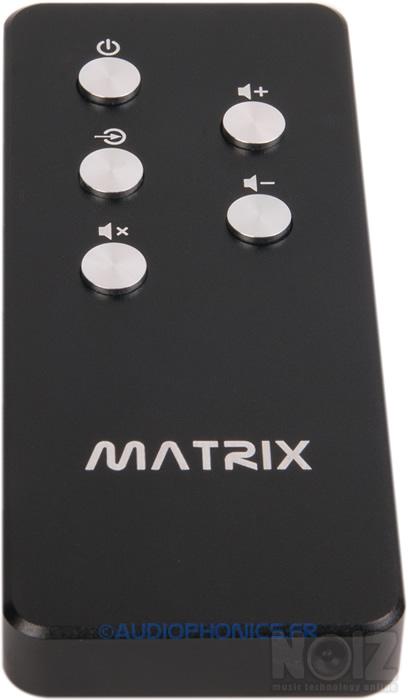

Comes with Infrared Control Remote Control (Volume Control, Mute, Power On / Off and Source Selection)

Digital Inputs:

Toslink optics from 44.1 to 192kHz
Coaxial: 75ohm RCA or BNC (supplied adapter) from 44.1 to 192kHz
AES / EBU: XLR symmetrical 5v from 44.1 to 192kHz
USB: 44.1 or 48kHz USB-B connector (PC only)

Digital Outputs:

SPDIF Coaxial
44 to 192kHz according to input
Allows even redirecting an AC3 or DTS stream

Analog Outputs:

RCA: 0 ~ 2V variable volume
XLR: 0 ~ 4V variable volume
Frequency response: 20Hz - 20kHz
Signal to noise ratio: 105dB
Dynamic range: 108dB
Distortion: 0.0002% @ 1kHz

Others:

Weight: 1.2kg
Dimensions: 205x155x48mm
Power Consumption: 15W
Supplied with: Power cable, B adapterNC -> RCA3
Comes with Infrared Control Remote Control (Volume Control, Mute, Power On / Off and Source Selection)
