VOX AD30VT

Σε πάρα πολύ καλή κατάσταση, πολύ λίγες ώρες χρήσης στο σπίτι. Ο υβρίδικός ενισχυτής της Vox, δείτε λεπτομέριες παρακάτω:

The power amp section of all four models of the AD series used the patented Vox Valvetronix Valve Reactor circuit Vox introduced several years earlier in the "blue grill" Valvetronix series amps.

The concept of the circuit is to use a 12AX7 preamp tube in an unusual way - as the heart of a one watt power amp. The one watt output from this 12AX7 then supplies a solid state power amp to achieve the final 15 watt (AD15VT), 30 watt (AD30VT), 50 watt (AD50VT), or 100 watt (AD100VT) output.

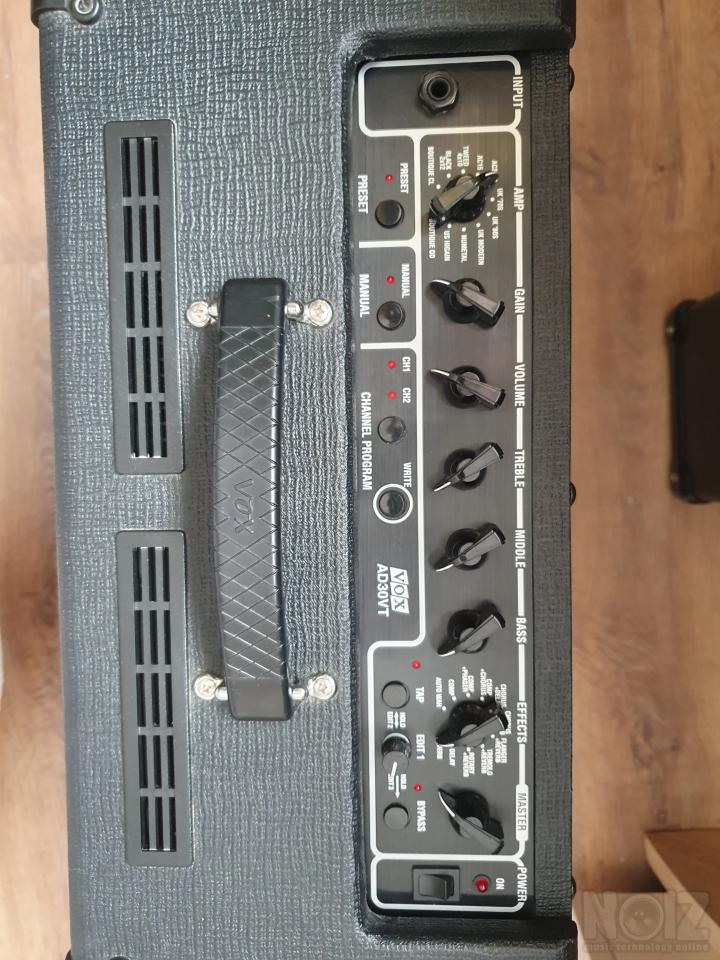

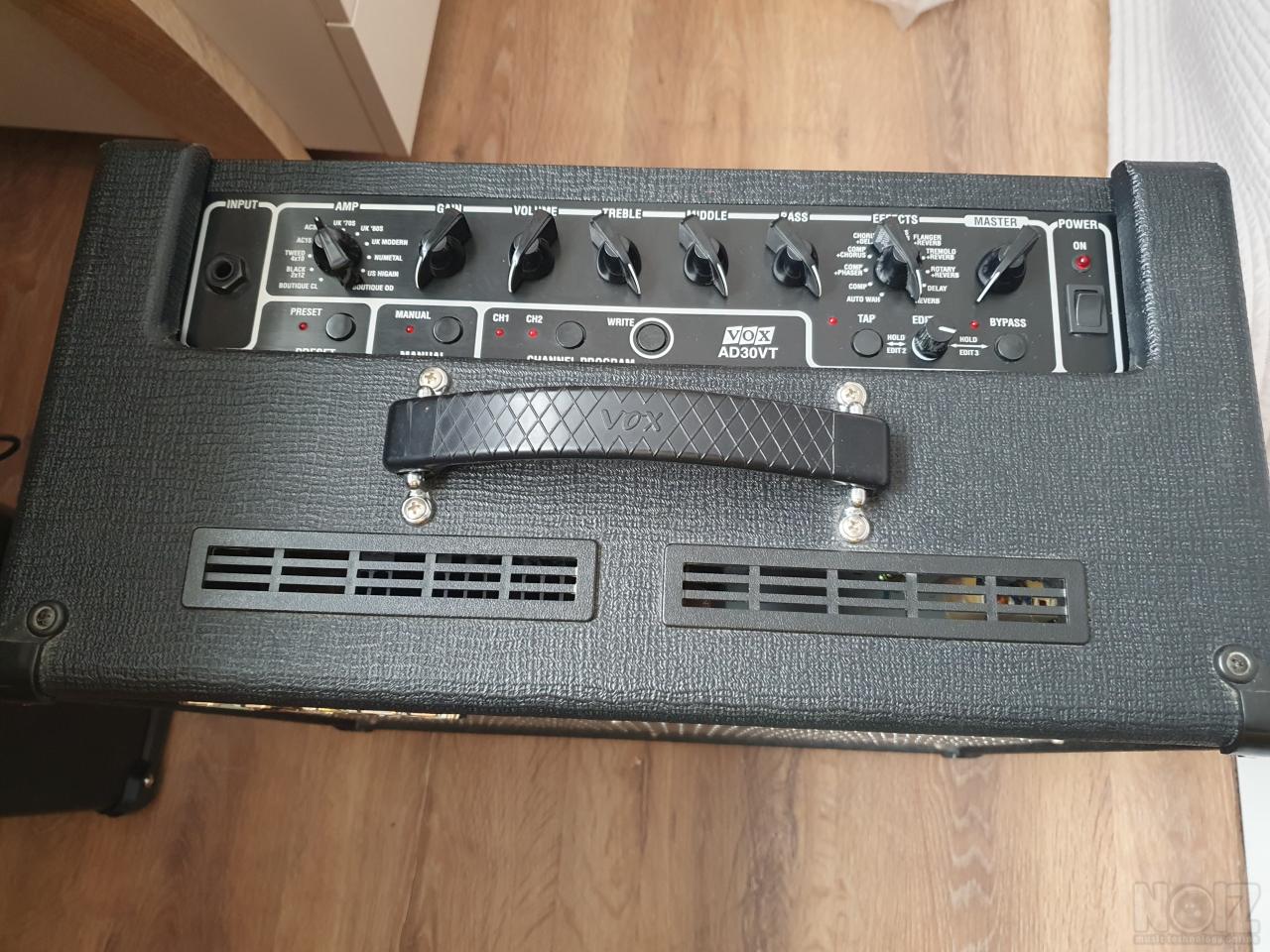

A rotary control on the top panel selected between a number of different "amp models." A 60s era Vox amp might have a "Class A" output stage, but a "black face" or "UK70s" amp might be "Class AB."

The Valvetronix circuitry would actually reconfigure itself to either "Class A" or Class "AB" to match the circuitry of the selected amp model.

The AD Series amps offer 11 amp models. These amp models are selectable from a rotary control on the left side of the top panel. The amp models are: Boutique Clean, Boutique Overdrive, Tweed 4x10, Black 2x12, AC-15, AC30 Top Boost, UK 70s, UK 80s, UK Modern, Nu Metal, and US Hi Gain.

The AD series of amps also offer eleven pedal type effects that are selectable from a rotary control on the right side of the control panel. The effects included are: Auto Wah, Compressor, Compressor+Phaser, Compressor+Chorus, Chorus+Delay, Chorus+Reverb, Flanger+Reverb, Tremolo+Reverb, Rotary+Reverb, Delay, and Reverb.

The AD Series of amps also allowed the guitarist to store two "tone patches" in the memory of the amp. The programmer would remember the amp model and effect selected and allow you to access these patches instantly either through buttons.
