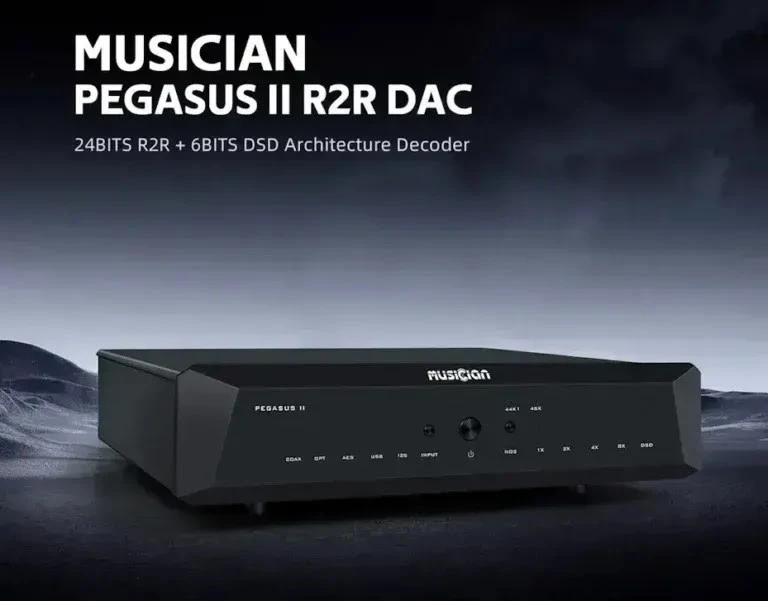

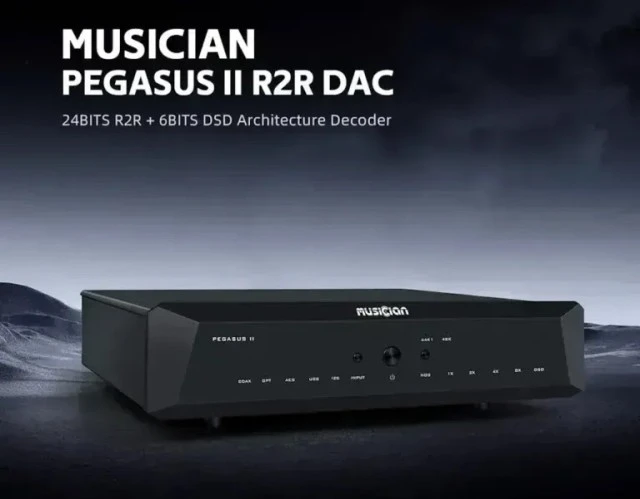

Πωλειται DAC MUSICIAN PEGASUS II R2R....εδω παραθετω τα χαρακτηριστικα του...Features

Proprietary R2R + DSD Architecture
True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
Low Noise Power Supply
FIFO Buffer
Digital Signal Processing via FPGA
DSD1024, PCM1536 Supports USB & I2S Input (the audio source needs to be compatible with the native interface)
Proprietary USB Audio Solution via STM32F446 Advanced AMR-Based MCU
Licensed Thesycon USB Driver For Windows Platform
Driverless On Mac & Linux..Input
DSD1024 On USB & I2S Input
PCM
24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
1536kHz On USB & I2S Input
Sampling Mode: Non-Oversampling NOS / Oversampling OS

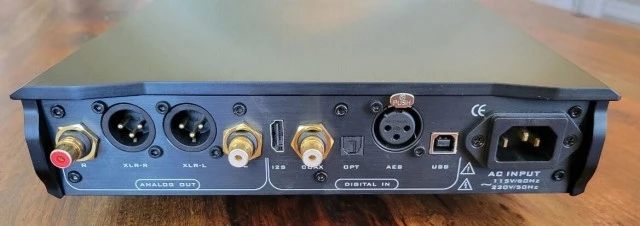

Digital Input
Coaxial * 1 via RCA
Optical * 1
USB * 1
AES/EBU * 1
I2S via HDMI LVDS * 1
Analog Output
RCA: 2.2Vrms
XLR: 3.55Vrms.Specifications
Frequency Response: 10Hz~60KHz
THD+N: 0.002%
S/N Ratio: 123dB(A-weighted)
Dynamic Range: >120dB
AC Power Requirement: 110-240VAC, 50/60Hz (Worldwide Voltage)
Power Consumption: ≤20W
Dimension: 280 x 250x 50 mm
Package Dim: 375 x 330 x 115 mm
Package Content: DAC + AC power cable, No remote control.
Weight:3.9 Kg
Color: Black..Discrete Symmetric DAC R2R 32bit 1536kHz DSD1024

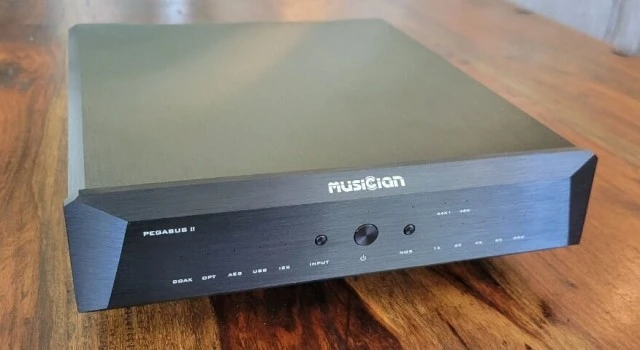

The Musician Pegasus presents itself as a magnificent and particularly powerful DAC, taking advantage of a neat R2R architecture. Integrating the best current technologies, the device benefits from a low-noise power supply, a FIFO buffer, signal processing by FPGA and a FIR filter. It is thus capable of decoding very high sample rates, up to 32bit PCM 1536kHz and DSD1024 via its USB and I2S inputs. The USB interface is managed by a STM32F446 MCU with Thesycon driver. The whole unit is integrated in a massive Aluminium case.
Version II of the Musician Pegasus DAC features an upgrade of its internal components for enhanced performance. This time it benefits from an Altera Cyclone IV chip, as well as audiophile-grade capacitors and independent power supplies for its digital and analog parts.
Τιμη προσφορας : 800 ευρω..ΠΑΡΑΚΑΛΩ ΟΧΙ ΑΝΤΑΛΑΓΕΣ - ΟΧΙ ΠΑΖΑΡΙΑ - ΟΧΙ ΑΠΟΚΡΥΨΗ...
