Tone Garage captures the pure essence of analog in these compact effect units by pairing carefully selected components with a unique design philosophy.

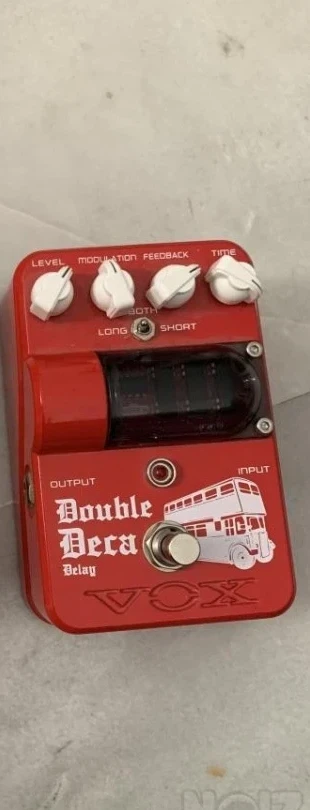

The DOUBLE DECA analog delay offers a unique tonal signature from Tone Garage’s all analog circuitry.Main features

Discrete circuitry – the result of a relentless design philosophy
True bypass design provides tonal confidence even when the effect is off
Tough die-cast body that stands up to the rigors of the road
A rich variety of analog delay sounds powered by three BBD (Bucket Brigade Device) chips
BBD chips utilizing the famous 3205 chip
Independent modulation knob also adds a chorus effect
Specifications

Input impedance: 600kΩ
Output impedance: 2.2k Ω
Connections: INPUT jack (guitar input), OUTPUT jack (line output)
Power: AA battery x 6 / AC adapter / DC 9V (Option)
Consumption current: 36mA
Battery Life: Approximately 80 hours
Dimensions: (W x D x H): 87 x 132 x 63 / mm, 3.43 x 5.20 x 2.48 / inch
Weight: 420 g / 14.81 oz (not including battery)
Accessories: AA alkaline battery x 6 (for verifying operation)
Options: AC Adapter
