TSL Studio Equipment - MAYDAY ANALOG MODULATOR

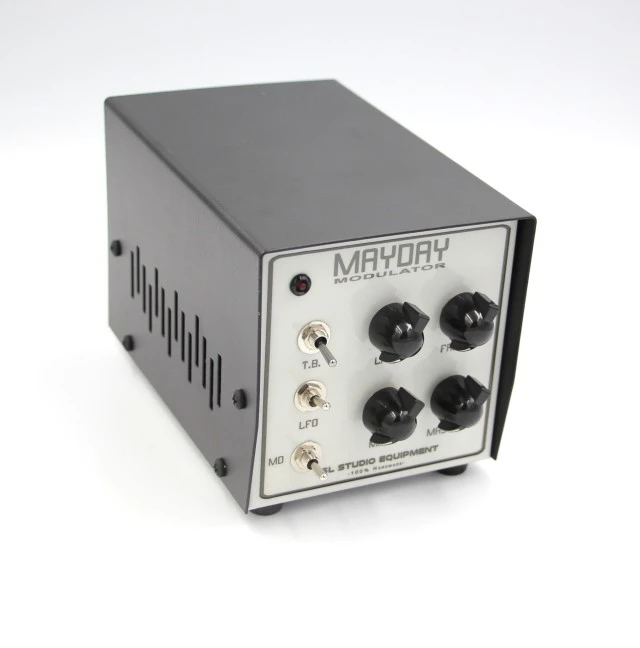

Handcrafted in Greece, this limited edition analog modulator features point-to-point wiring with NOS components and vintage pure copper connections. Designed by George Tsomokos, its unique circuit blends a pure dry signal with a dynamically modulated effect via a front-panel MIX knob.

Dynamic Modulation: Very unique Effect Unit with combination of Ring Modulator - Octaver - Fuzz - Distortion and A low-frequency oscillator (0.01 Hz to 30 Hz) breathes life into the internal sound engine for ever-evolving textures.
Precision Control: A carefully tuned variable resistor network lets you sculpt tones with accuracy.
Robust Build: Housed in a handmade steel and aluminum enclosure, each unit is a work of art.
Working perfect with Guitar, Bass, Synthesizer or any other instrument
Its True Bypass
Working with 9V dc negative center tip polarity power supply (Boss Style)

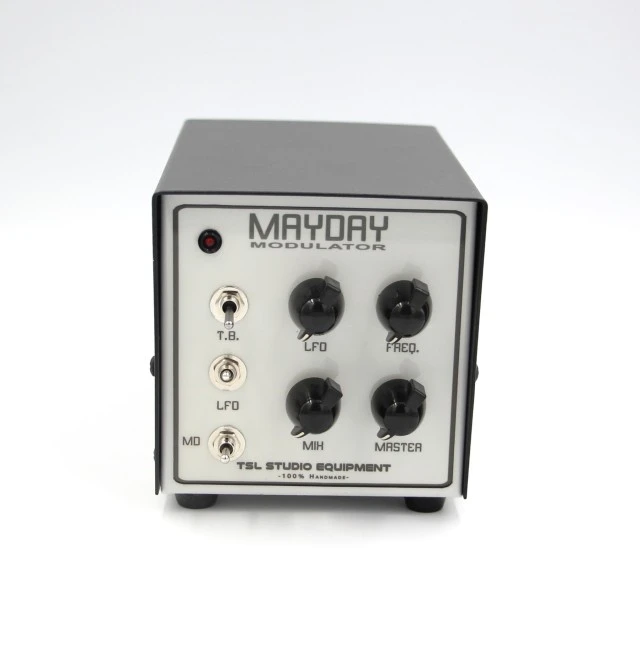

KNOBS:

- LFO control the LFO Freq. from 0.01hz to 30Hz with pure sinewave waveform.

- MIX it mix the dry and the effect signal.

- FREQ is the Octave - Modulstor control to choose the main frequency for the effect sound.

- MASTER is the master volume for the audio output signal.

Switches:

- T.B. is the True Bypass Switch.

- LFO is the switch to turn On/Off the LFO.

- MD 3 types Modulation for Very Bass sound, Midd Freq range sounds , High Freq Range Sounds.

I send my packs world wide with A priority Registered PAckage and Tracking Number.

Only a few pieces are available—grab yours and add a rare, authentic touch to your sound!
