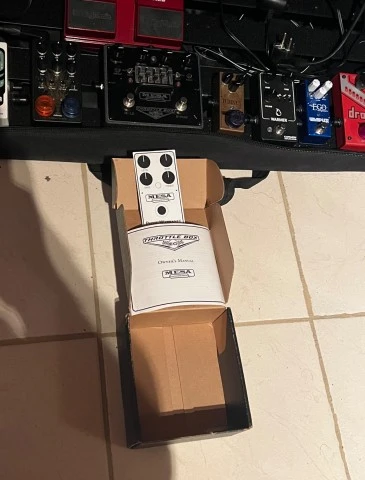

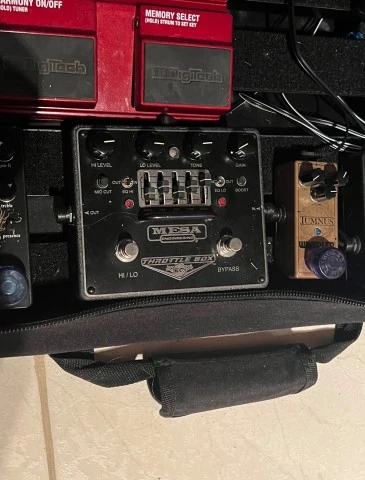

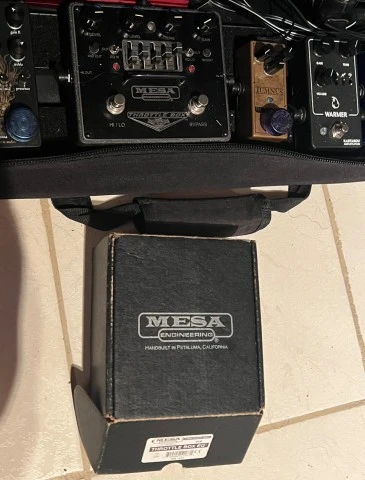

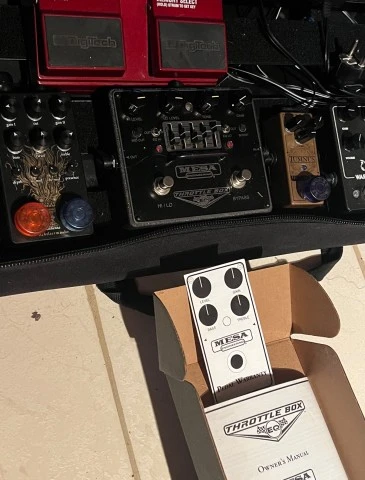

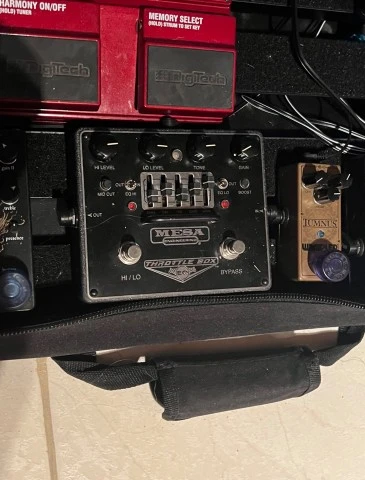

Mesa Boogie Throttle Box EQ

PRODUCT FEATURES:

• Designed and Handcrafted in Petaluma, California, USA


• True Bypass On/Off Footswitch bypasses all circuitry when off to ensure no tonal loss


• HI/LO Footswitch provides instant access between HI & LO (Gain) Modes for greater musical versatility


• Gain Control allows you to dial in the perfect amount of classic to modern high-gain


• Tone Control balances the amount of high frequencies


• Mid-Cut Control provides powerful mid-scoop for modern high-gain styles


• Boost Switch provides an enhanced EQ-voicing with more and lower bottom end, sweet tailored mids and crisp, shimmering highs


• 5-Band Graphic EQ with LED Indicators provide Auto-Assignability to either Mode (HI or LO) via Independent On/Off Switches and Mesa’s legendary tone-shaping power with +/- 12dB of boost or cut at 80Hz, 240Hz, 750Hz, 2.2Khz and 6.6Khz


• Independent HI & LO Mode Master Level Controls provide exceptional performance versatility and a variable range of signal boost up to +20dB for each Mode


• On/Off Status LED with Dual Color LED’s to indicate the active Mode (LO = Yellow / HI = Red)


• 9V Battery Powered or Externally Powered (optional) via External Power Supply Input Jack


• Input & Output Jacks (Nominal Input -20dB)

SPECIFICATIONS

• Dimensions (W/D/H): 5.78" x 4.76" x 2.30" (146.8mm x 121mm x 58.4mm)


• Weight: 1.7 lbs. (817g) with (one) battery, 1.6 lbs. (726g) without battery


• True Bypass Switching


• Battery Type: 9VDC (One or Two – Two for extended battery-powered use)


• Power Consumption (Current Draw): 9VDC/45mA


• External Power Supply (Not Included): WARNING!!! To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC with a NEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.


• Input Impedance: 1M Ohm (500k Oh
