Περιγραφή

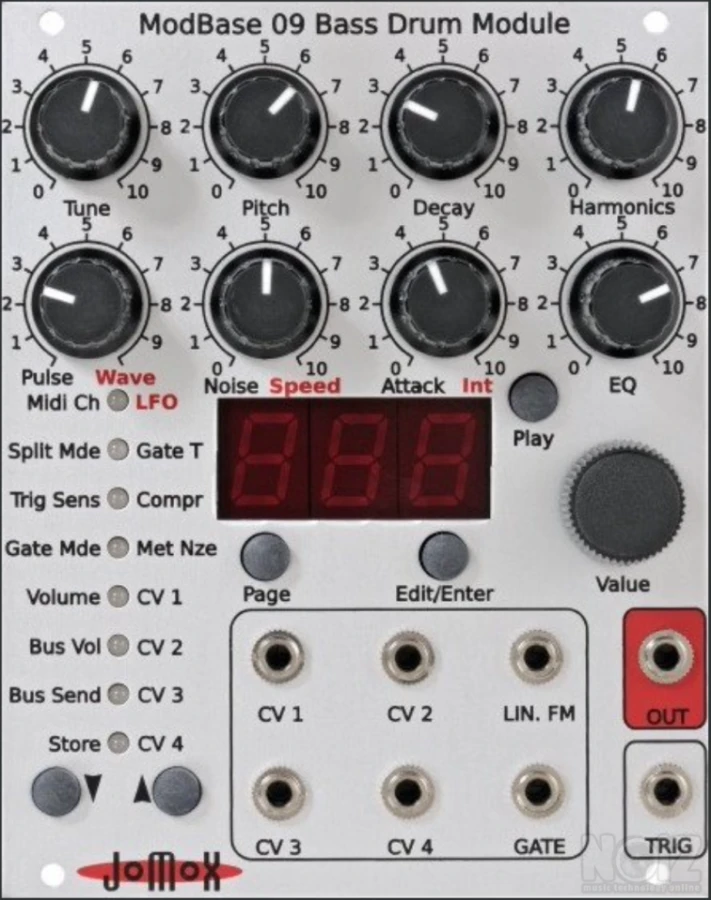

Analogue VCO
Tunable from 10 - 175 Hz
Adjustable parameters: Tune, pitch, decay, harmonics, pulse, noise, attack and EQ
2 LFOs with 16 unipolar and bipolar waveforms
Memory for 100 presets
Control of all parameters via MIDI controller
4 CV inputs, assignable to all parameters
Linear FM input
Trigger and Accent inputs
Audio output
MIDI in/out (5-pin DIN)
Current consumption: 140 mA (+12 V) / 80 mA (-12 V)
Width: 20 HP
Depth: 53 mm
Tunable from 10 - 175 Hz
Adjustable parameters: Tune, pitch, decay, harmonics, pulse, noise, attack and EQ
2 LFOs with 16 unipolar and bipolar waveforms
Memory for 100 presets
Control of all parameters via MIDI controller
4 CV inputs, assignable to all parameters
Linear FM input
Trigger and Accent inputs
Audio output
MIDI in/out (5-pin DIN)
Current consumption: 140 mA (+12 V) / 80 mA (-12 V)
Width: 20 HP
Depth: 53 mm
Χαρακτηριστικά
Μάρκα
JoMoX
Μοντέλο
ModBase 09
Χώρα κατασκευής
Germany
Κωδικός
NOIZ576511
Ανταλλαγές Δεκτές
Όχι
