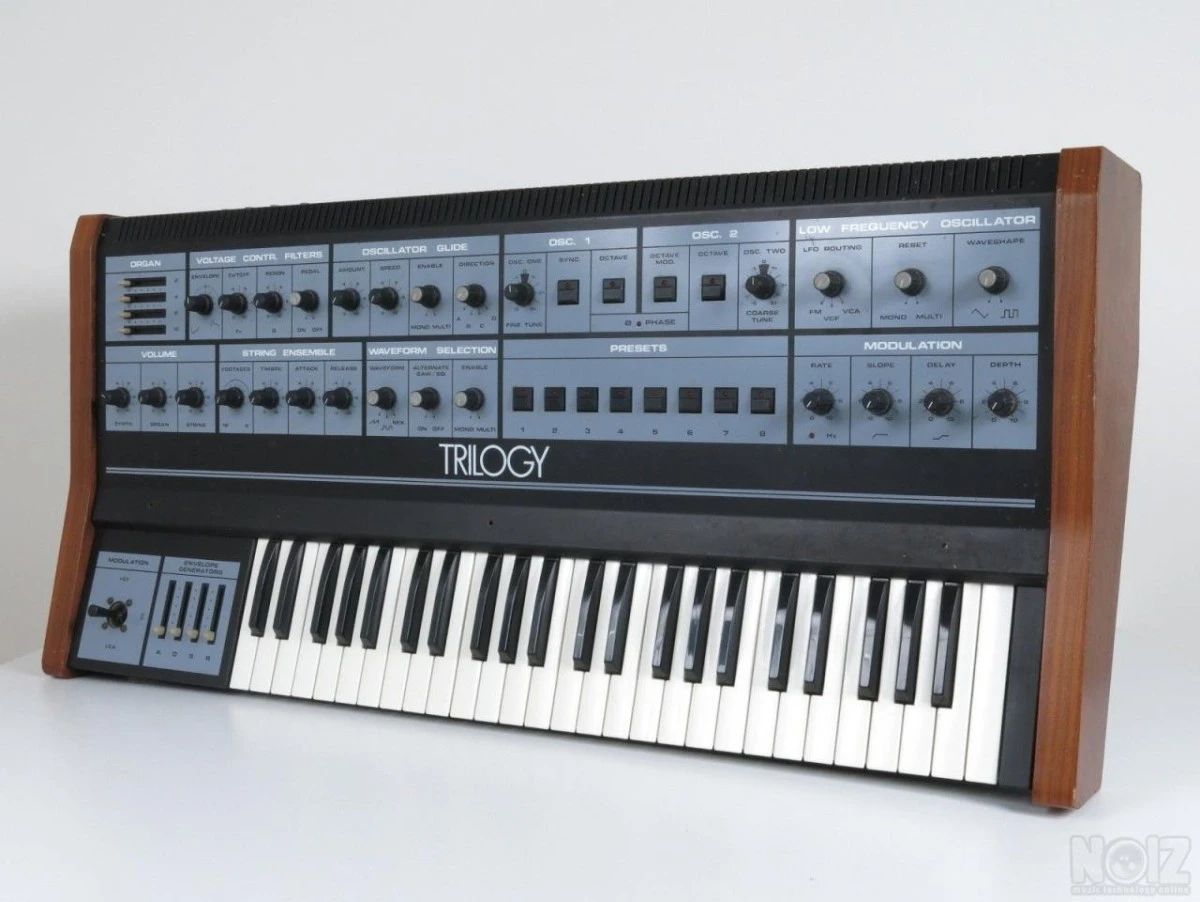

CRUMAR TRILOGY analog polyphonic synthes

Polyphonic analog synthesizer, string machine, organ.

Ο ήχος των 3 section μπορούν να συνδυαστούν είτε να στελνονται αυτόνομα.



SYNTHESIZER SECTION :6 voice polyphonic.

Εκπληκτικός αναλογικός ήχος απο 2 oscillators με ανεξάρτητο κούρντισμα.

VCF

Το φίλτρο του χρησιμοποιεί 6 CEM 3320 όπως και τα Elka synthex, Fairlight CMI II/Iix, LinnDrum, Linn 9000, Oberheim ob8, Ob xa, Ob sx,Dx, Dmx, Prophet-5 Rev 3 & rev 4, Prophet 10, Pro –one, Drumtraks.

ENVELOPE GENERATOR

6 CEM 3310 που έχουν χρησιμοποιηθεί από Memorymoog, Oberheim ob8, Ob xa, ob x, ob sx. OB-1, Prophet-5 Rev 3, Prophet-10, Pro-One.

VCA

6CEM 3330 όπως και στα Oberheim ob8, Ob xa, Prophet-5 Rev 1 & rev 2

MODULATION

The Trilogy LFO features triangle and square waveforms, and sports controls not often found on other synths. These included a variable delay control that determines how quickly the LFO is brought into the sound, a variable slope for blending two separate tones, and a glide feature for a glissando pitch change in the initial attack of a sound. An oscillator sync option determines the high frequency attack of one oscillator with the other high frequency oscillator. An input on the rear panel allowed for pedal control of this function.

ORGAN SECTION

The Organ section implements two additional detunable (or syncable) master tone generators divided-down to generate the octaves of the 4 horizontal drawbars (2', 4', 8' and 16'). The fact that the two master Organ oscillators can be detuned allows to produce a vast, rich, organy sound. The Organ section is fully polyphonic and can benefit of the Glide effect and the LFO features.

STRINGS SECTION

The Strings section is relatively simple but generates warm and unique brassy string sounds. The Strings section features a stepless "Footage" knob to mix low and high strings (16 ′ to 8 ′), a cutoff filter named "Timbre" and volume Attack and Release.
