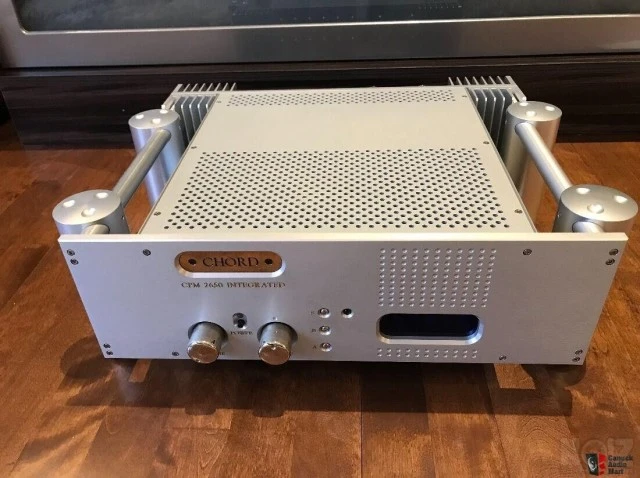

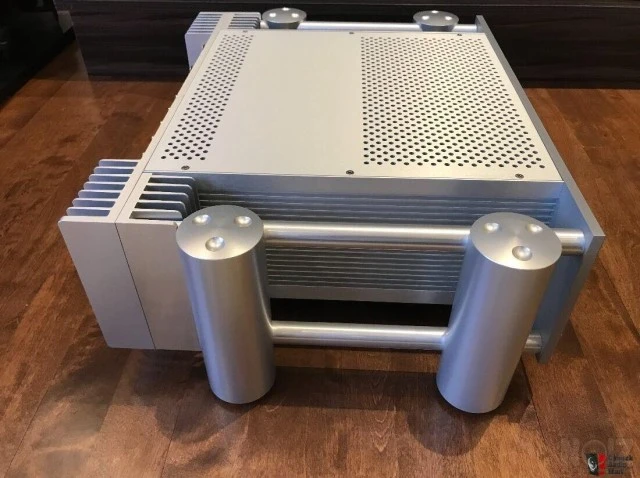

ΕΝΙΣΧΥΤΗΣ CHORD CPM - 2650

Πωλειται ΟΛΟΚΛΗΡΩΜΕΝΟΣ ΕΝΙΣΧΥΤΗΣ CHORD CPM - 2650....εδω παραθετω τα χαρακτηριστικα του...Product Specification

Pre-Amp Section

Unbalanced Inputs: Video, Radio, Tape1 and Tape2

Balanced Inputs: Disc 1, Disc 2 are 3-pin female XLR inputs both with RCA Phono style input sockets wired

asymmetrically in parallel

Outputs: 2 x RCA Phono style, gold-plated with Teflon dielectric insulation

Intermodulation Distortion: -100dB all inputs

Signal to Noise Ratio: -93dB all inputs

Frequency Range: 2.5Hz – 200kHz (-3dB)

Harmonic Distortion: 10 Hz –91dB, 1kHz –93dB, 10kHz –90dB, 20kHz –87dB

Channel Separation: 10 Hz 90dB, 1kHz 90dB, 10kHz 90dB, 20kHz 85dB

Channel Balance: 0.01dB

Input impedance: Unbalanced 47kOhms, Balanced 94kOhms (Disc 1 & Disc 2)

Pre-amp Output impedance: 470Ohms

Output Offset: 0mV both channels

Power Amp Section

Output Power: 120W rms per channel @ 0.05% distortion into 8 Ohms

170W rms per channel into 4 Ohms

Dynamic Headroom: 180W rms per channel into 8 Ohms

220W rms per channel into 4 Ohms

Frequency Response: -1dB, 0.8Hz to 46kHz (8 Ohms)

-3dB, 0.8Hz to 77kHz (8 Ohms)

-1dB, 0.8Hz to 39kHz (4 Ohms)

-3dB, 0.8Hz to 75kHz (4 Ohms)

Signal To Noise Ratio: Better than –103dB, ‘A’ weighted two thirds

Channel Separation: -80dB

Output Impedance: 0.03 Ohms

Output Inductance: 2.6mH

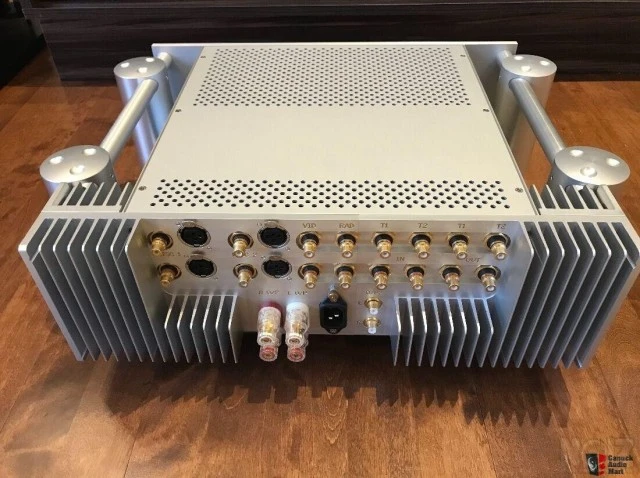

Output Connections: 2 x gold plated WBT connections

Slew rate: 70V per S, 1kHz 20V square wave

Gain: 30dB

Stability: Unconditional

Dimensions: 420mm (w) x 355mm (d) x 133mm (h) Weight: 16Kg.τιμη πωλησης 3490 ευρω...ΠΑΡΑΚΑΛΩ ΟΧΙ ΑΝΤΑΛΑΓΕΣ - ΟΧΙ ΠΑΖΑΡΙΑ - ΟΧΙ ΑΠΟΚΡΥΨΗ...
