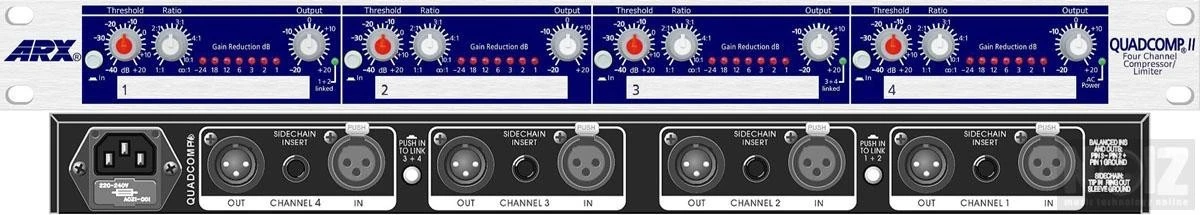

ARX Quadcomp II Handmade Four-Channel Compressor / Limiter σφραγισμένος.

Internally, each compressor uses Class A VCAs and true 2 pole averaging RMS/DC converters for low distortion and accuracy, plus program dependent attack and release time, which automatically determines optimum compressor response.

Features:

-Four Independent Compressor Channels

-Channels 1 and 2, 3 and 4 are stereo linkable

-7 LED Gain Reduction metering

-Sidechain Insert points

-Input Impedance: Balanced 20kΩ, Unbalanced 10kΩ

-Input Headroom: + 20dB

-CMRR: >50dB, 20Hz—20kHz

-Output Impedance: Balanced 300Ω, Unbalanced 150Ω

-Output Level (Max): + 20 dB

-Frequency Response: ±20Hz, ±0.5dB

-Signal to Noise ratio: -93dB Unweighted, -98dB weighted

-Distortion: .015% THD @ 0dB,1kHz

-Dynamic Range: 108 dB

-Attack and Release Times: Program dependent metering

-7 LED display: –1, 2, 3, 6, 12, 18, –24 dB

-Sidechain Insert Impedance: 10kΩ

-Input Connector type: Balanced XLR

-Output Connector type: Balanced XLR

-Sidechain Insert Connector: TRS Jack
